Inkwell

Inkwell

Stats

Height
59 mm
Width
52 mm
Depth
52 mm
Filament
29 g PLA

Model files

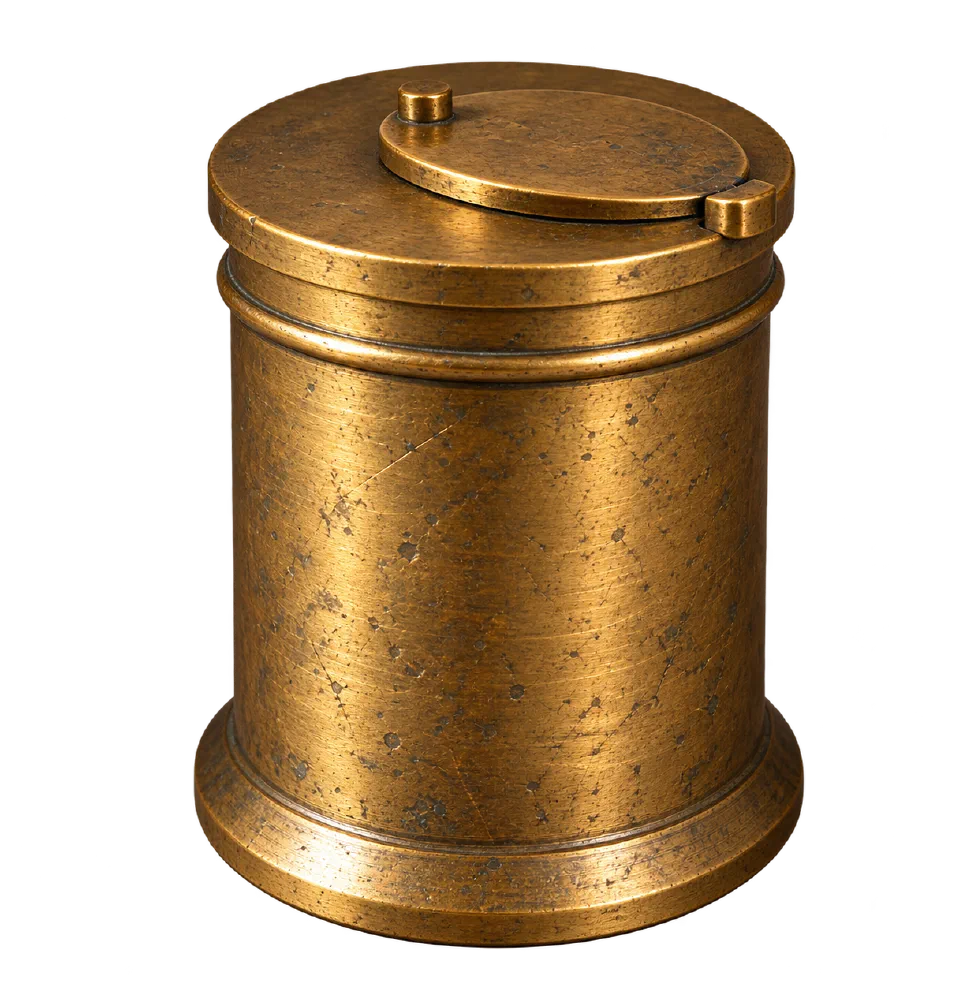

An inkwell whose lid swings aside on a brass-wire pivot.

Printing and assembly

Three parts in PLA, no supports. Print the body upright, the top as supplied (upside down), and the lid flat.

  1. Drill the pivot holes in the lid and top with a 1/16-inch bit.
  2. Finish the parts (below), painting the top and lid before assembly.
  3. CA-glue the 1.2 mm brass wire into the lid’s blind hole.
  4. Pass the wire through the top and bend its end over on the inside. Keep glue out of the joint; check the lid swings freely.
  5. CA-glue the top onto the body.
  6. Add lead-shot ballast through the ink opening if wanted.

Finishing

Sand lightly, then spray high-build automotive primer. Add a few dings with a small tool. Spray Krylon Metallics Brass, then age it with a burnt-umber wash.

Display only; not for liquids.
