Reed Pen


Stats
- Height
- 180 mm
- Width
- 8.4 mm
- Depth
- 8 mm
- Filament
- 22 g PLA
- Nozzle
- 0.4 mm
Stats are for the original 180 mm pen; the other variants are 162 and 171 mm long.
Model files

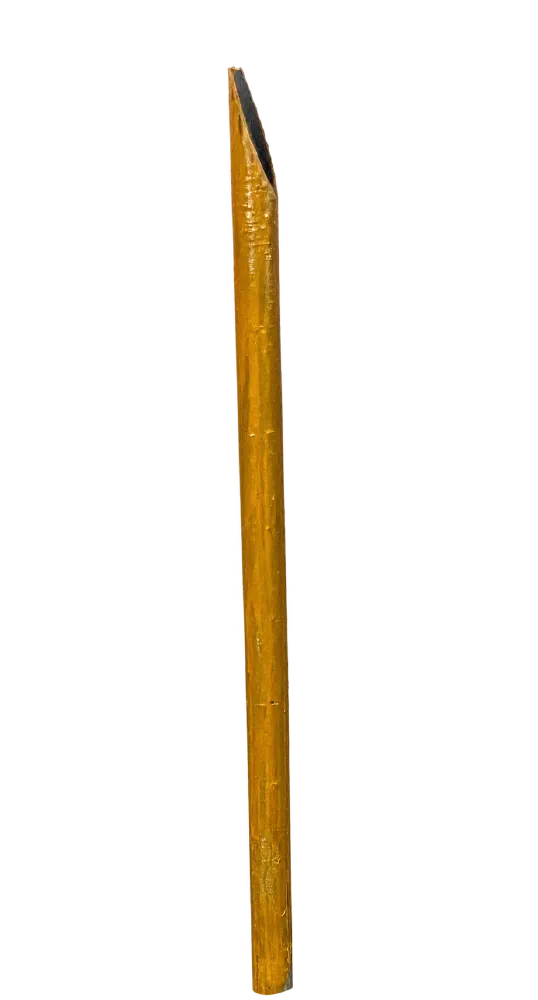

Three reed-pen variants with chisel-cut nibs, hollow ends, and grooves that read as grown reed. At 180, 162, and 171 mm long, they differ in size and surface texture enough that they should look natural displayed next to each other. All three are included in the ZIP, each with a matching break-off stabiliser.
Printing
Load your chosen pen and its matching stabiliser as one object with two parts: reed_pen.stl with reed_pen_fin.stl, reed_pen_2.stl with reed_pen_2_fin.stl, or reed_pen_3.stl with reed_pen_3_fin.stl. Print standing on the wide end, nib up, with about 0.12 mm layers and a brim.
Snap the ties off the stabiliser and sand the stubs.
Finishing
Don’t oversand. Mix raw sienna and burnt umber 5:1 and brush thin coats along the length. Stain the nib with black or dark gray ink, then apply a matte clear coat.
